Connectors

ProductsConnectorsBTB / Etc Series

BTB / Etc Series

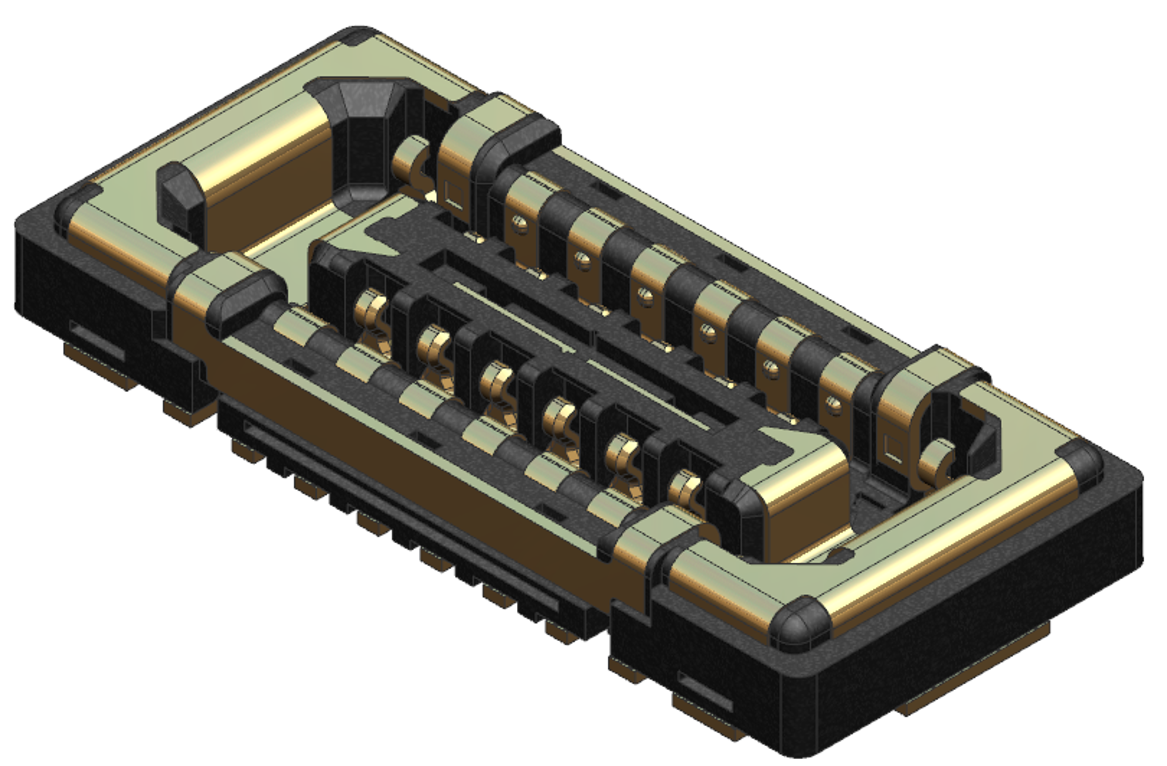

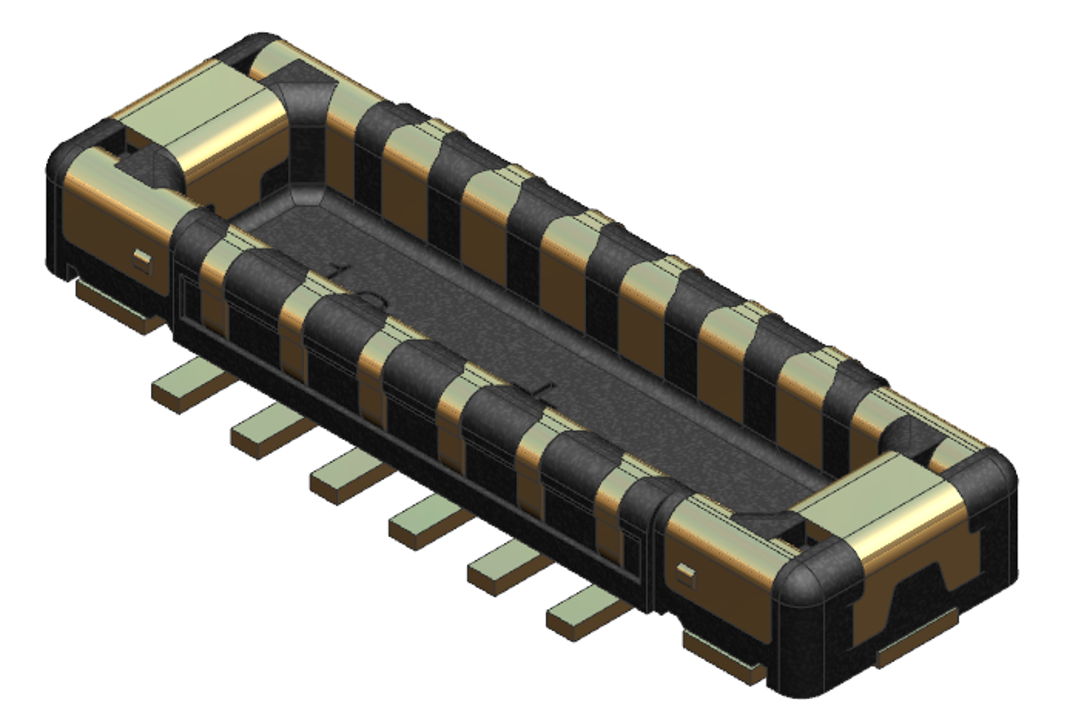

HB12-BH0100 / HB12-BS0100

RF BTB Header / Socket

Specification

Type	RF BTB Header / Socket
Rated current	Signal Contact 0.3A
Rated Voltage	30V AC/DC
(size : H x W x L)	0.6 x 0.35 x 3.41

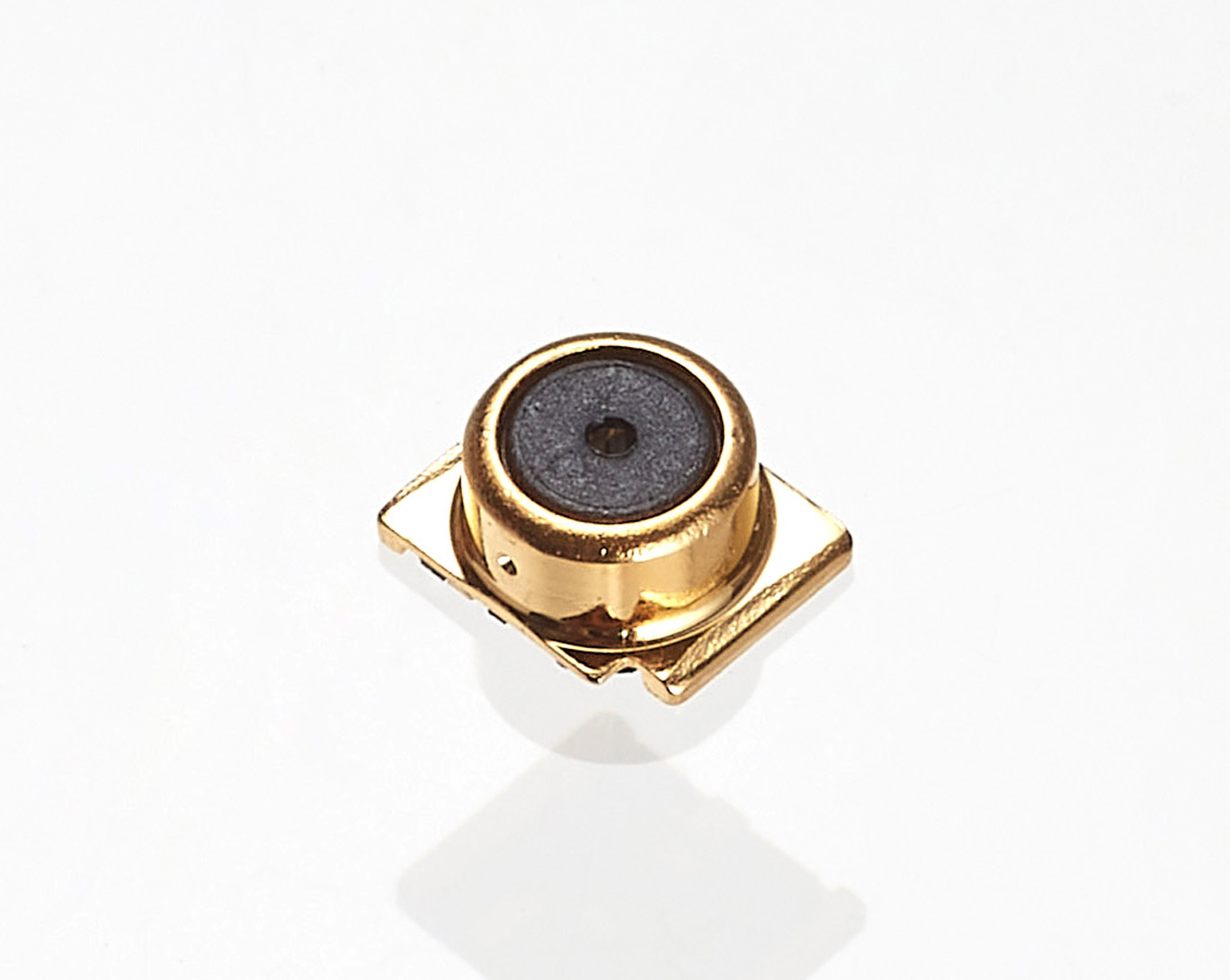

MOB-180

For RF (Radio Frequency)

Specification

Type	RF Switch
Impedance	50Ω
Frequency	DC ~6,000㎒
(size : H x W x L)	1.7 x 3.6 x 3.0

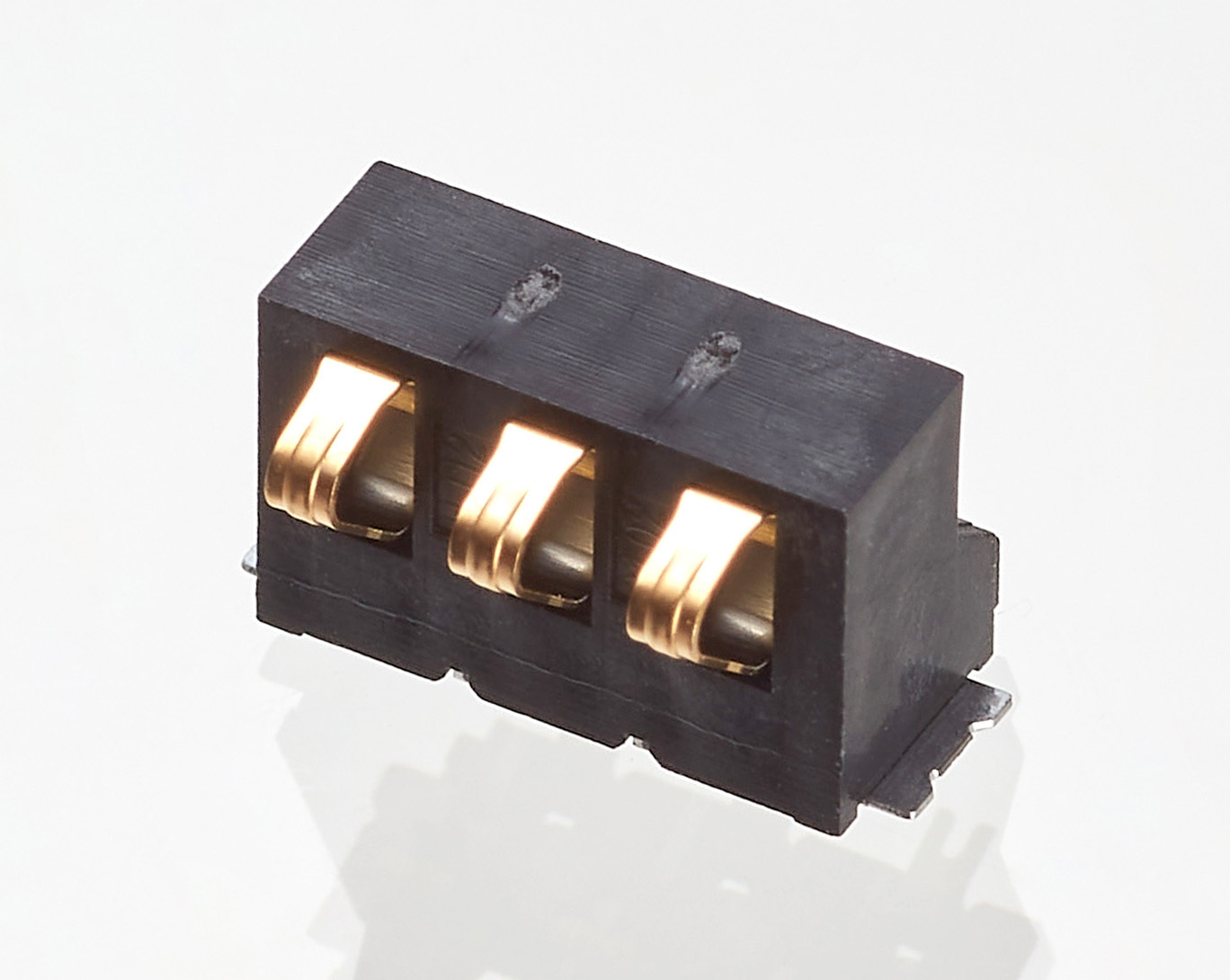

HH03-AF1905

Replaceable Battery interface connector

Specification

Type	Battery Connector
Rated current	3.0A / Pin (3Pin)
Rated Voltage	100V AC/DC
(size : H x W x L)	5.3 x 8.2 x 4.5

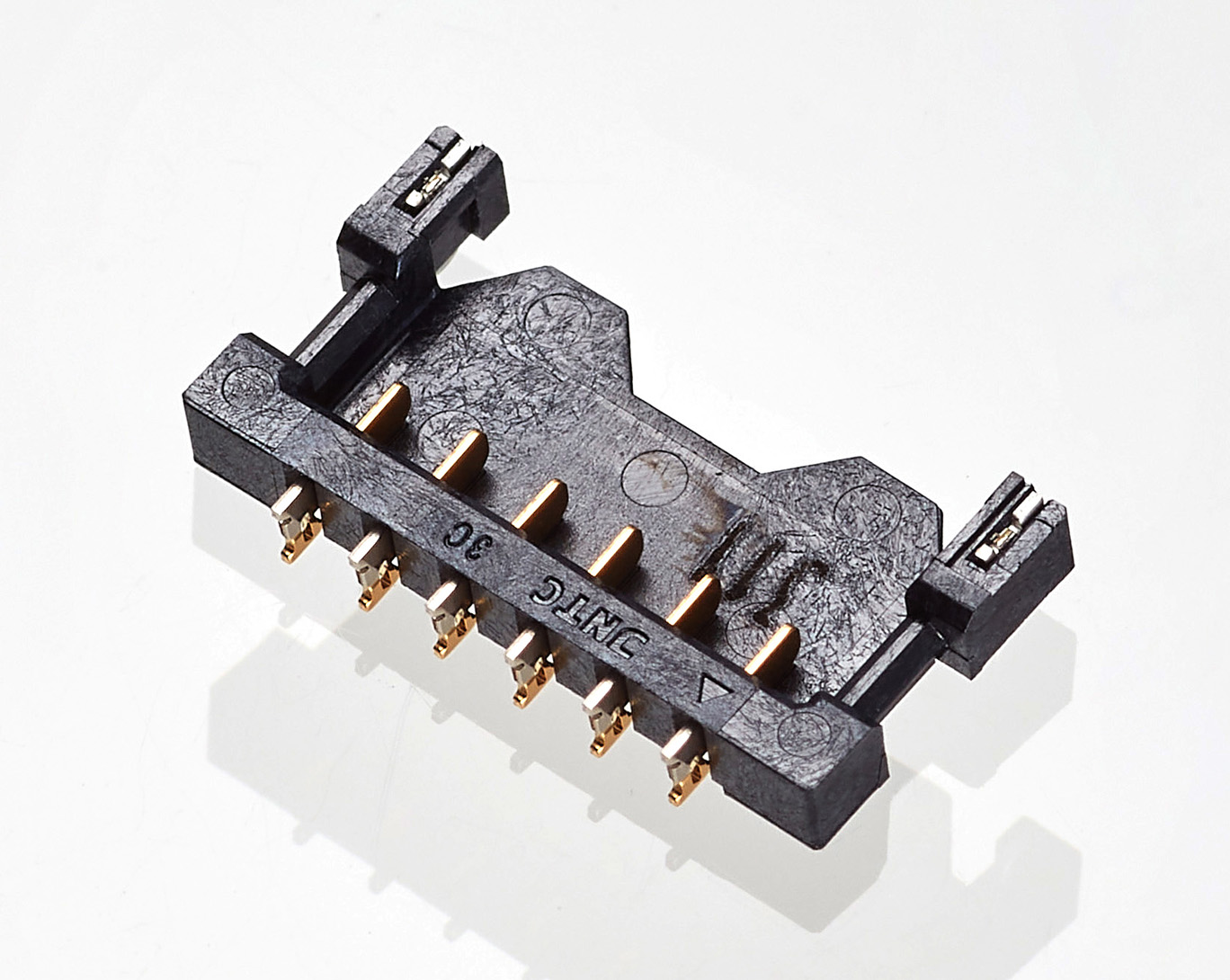

HH06-AF2300

Board to Wire Battery Connector

Specification

Type	Battery Connector
Rated current	AWG28 2.0A, AWG26 3.0A/ Pin(Max)
Rated Voltage	30V AC
(size : H x W x L)	1.65 x 12.2 x 6.28
